Poultry Machinery

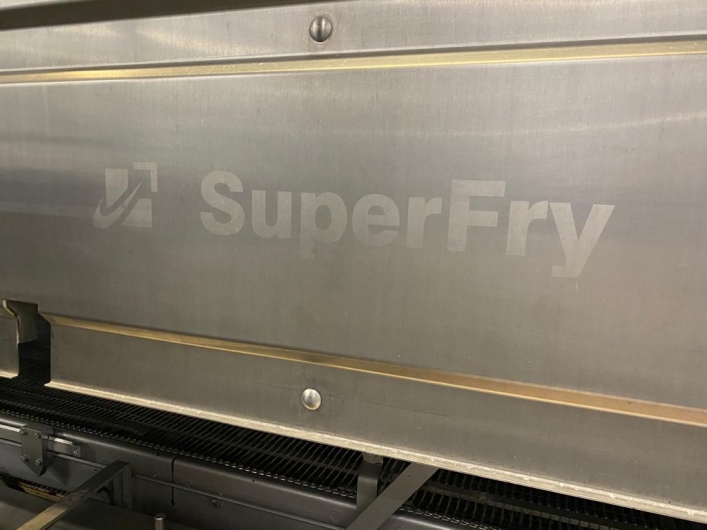

GEA SuperFry 650mm Fryer

Continuous Fryer with 650mm belt width.

Manufactured by GEA / CFS.
Thermal oil heated.
Teflon infeed for battered / tempura products.
Model SuperFry 4000 /650.
4,000mm frying length in oil.
650mm wide belt.
Year:  2007

A thermal oil boiler would need to be sourced separately.
The following details would need to be passed to Wanson or a similar boiler supplier to spec a suitable thermal oil boiler taking into account site-specific factors like heat loss due to the length of pipe run from Boiler to fryer etc.

Boiler requirements:

• Maximum capacity heat exchanger: 250 kW
• Temperature frying oil: 185 C
• Minimum capacity pump thermal oil: 18.2 m3/h
• Temp infeed: 280 C
• Temp outfeed: 255 C
• Resistance thermal heating unit total: 0.61 Bar
• Heat exchanger: 0.17 bar
• Temperature control unit: 0.44 bar
• Maximum allowed pressure in heat exchanger: 3 Bar
• Thermal oil volume total heating unit 90 litre
• Connection DN 65

A video of the fryer in action can be viewed below.
