Poultry Machinery

GEA Tiromat Compact (GEA PowerPak Uni) Thermoformer

CFS Tiromat rollstock thermoforming machine with 3 sets of dies.

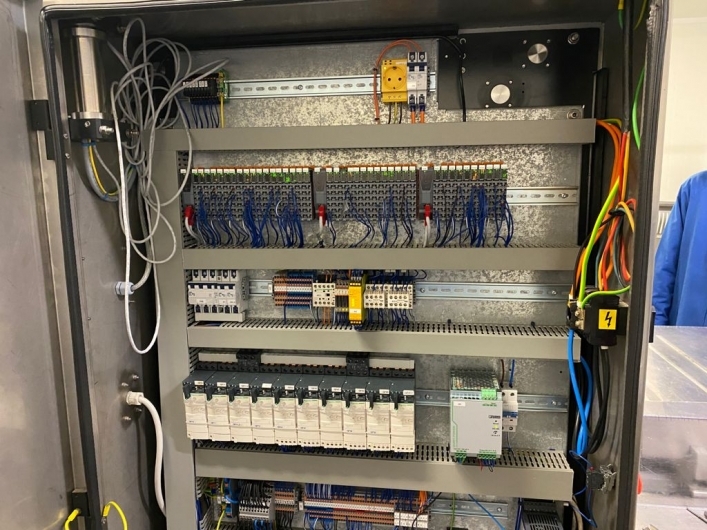

£30,000 GBP GEA complete control system upgrade from Siemens to B&R done in 2019.  This included a complete new control board with actual electro-components and the newest GEA control panel.  Features from the newest GEA machine generation are available.  GEA PowerPak Uni.  Minimum 10 years availability for all automation components from date of fitting.

Model M420 – 1999.  Upgraded in 2019. Stopped production in 2022.
420mm film width.
210mm index.
With gas flushing / MAP / Modified Atmosphere Packing.

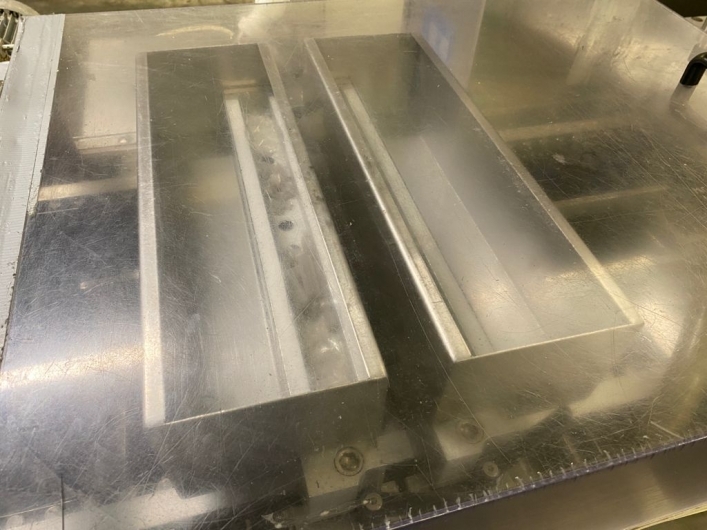

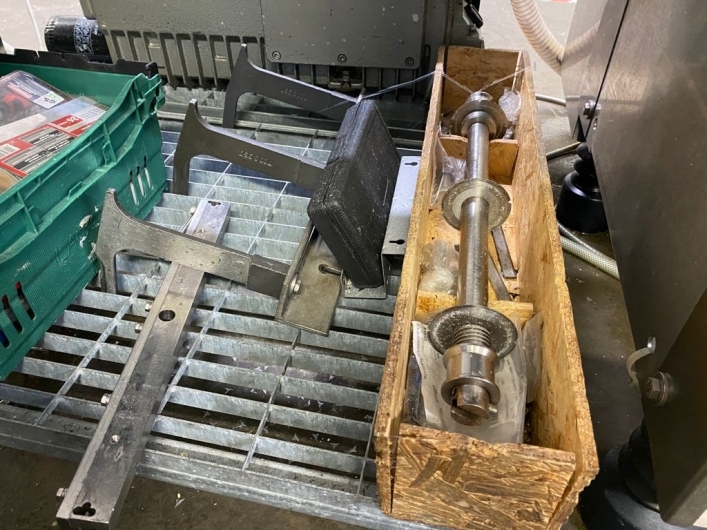

3 die configurations as shown in pictures.

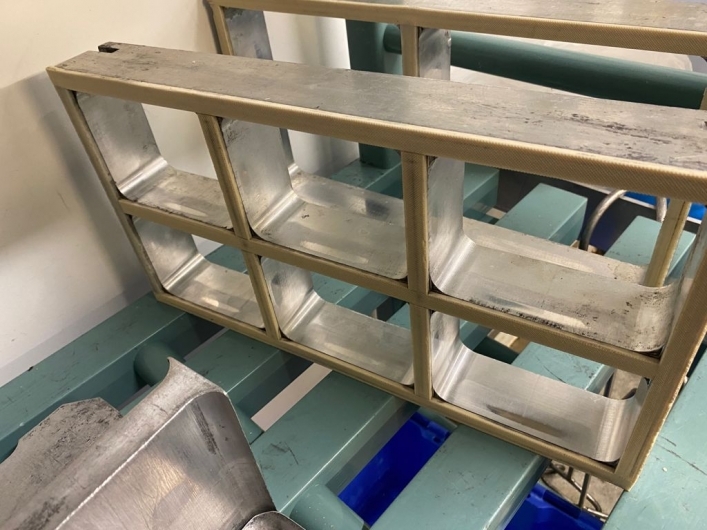

Die pack configuration 1:  6 packs- 3x2:
External:  133.3mm x 105mm x 10-85mm – 3x2.
Internal:  113.3mm x 85mm x 10-85mm – 3x2.

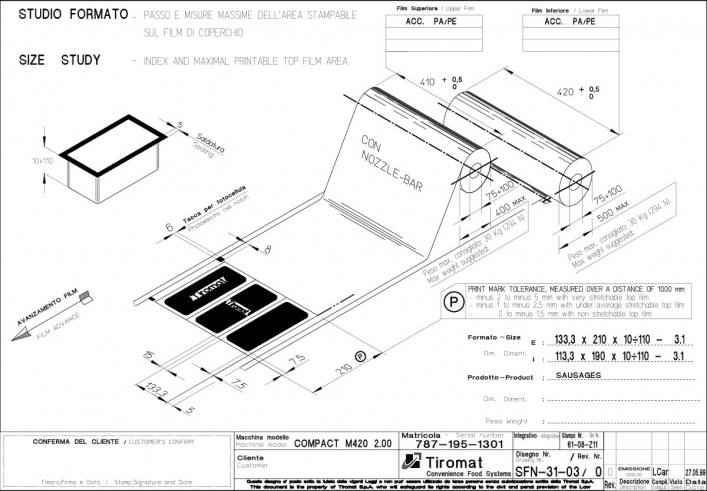

Die pack configuration 2:  3 packs- 3x1:
External:  133.3mm x 210mm x 10-110mm – 3x1.
Internal:  113.3mm x 190mm x 10-110mm – 3x1.

Die pack configuration 3:  2 packs – 2x1.
External:  200mm x 210mm x 10-130mm – 2x1.
Internal:  180mm x 190mm x 10-130mm – 2x1.
