Poultry Machinery

JBT Frigoscandia Gyrocompact spiral freezer

Model: Frigoscandia GYRoCOMPACT Classic 600
Type:  600-08-24-14 NS CCR
Year: 2015
Very good condition - rarely used.

This spiral freezing system has a self-stacking belt with unparalleled product zone hygiene in a vertical down airflow configuration.

Designed For: Freezing and chilling food products, both packaged and IQF.

Capacity/Size Range: Capable of freezing or chilling up to 2,000kg per hour dependent on product and application.  Was previously doing 1,800kg per hour of par-fried chicken nuggets.

Key Features:

• 24 tiers

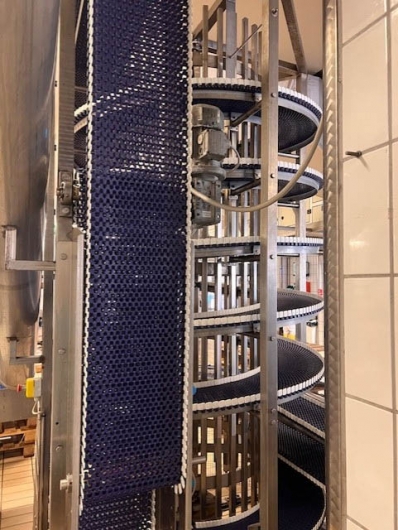

• Self-stacking stainless-steel mesh FrigoBelt
• Counterclockwise (CCR) belt rotation
• North/South configuration
• Belt width: 600mm

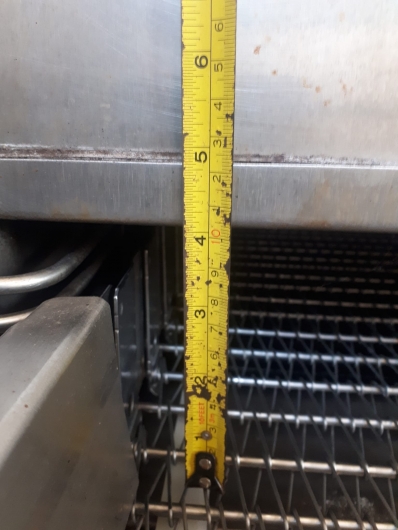

• 80mm link height
• Refrigerant: R507
• Adjustable belt speed of 3.5 - 30 metres / min.
• Residence time in minutes: Min: 9 / Max: 134
• Vertical airflow with counter current heat transfer

Refrigeration plant / compressors not included as is running on a central refrigeration plant.
