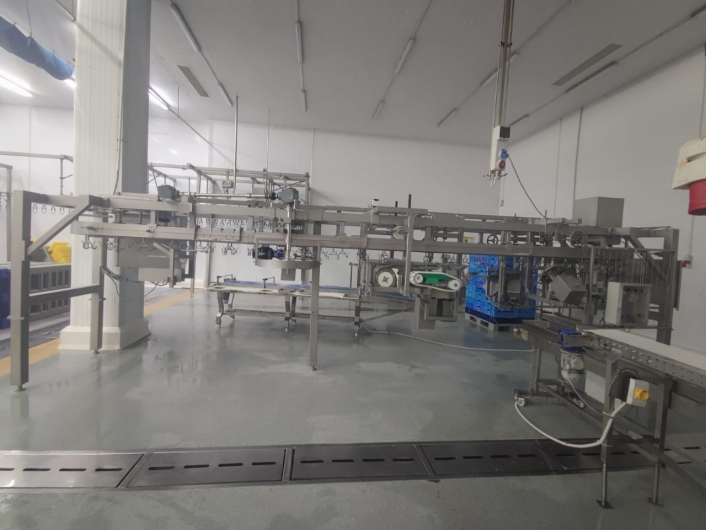

Meyn Compact Cut Up System FC-4500

Meyn Compact Cut Up System FC-4500 – 7.5 metres, complete with the following modules:

Neck Skin Cutter
HR Wing Cutter
Pre Cutter
Front Half Cutter
Leg Processor Splitter
Thigh Drumstick Separator

CUT UP FRAME

Meyn Compact stand-alone cut up frame with a total length of 7.5 metres.

The pre-wired cut up system is made of stainless steel and other non-corrosion materials.

Birds are hung manually in the cut up shackle.

Emergency stop cord set.

Tensioner.

One drive by an electric power of 1.5 kW.

Frequency converter for the drive.

Installed electric power: 1 x 1.5 kW.

MODULE DETAILS

Meyn neck cutter: The whole birds are positioned backwards to the machine. One rotating circular knife separates the neck skin from the bird. Electrical power installed: 1 x 1.1 kW.

Meyn HR wing cutter: The whole birds are positioned backwards to the machine. Two rotating circular knives separate the whole wing with a minimum of breast meat from the bird. Electrical installed power: 2 x 1.1 Kw.

Meyn pre cutter: 7 units to stretch the breast of the bird. Meyn automatic pre-cutting machine mounted in the first 180° corner. The birds positioned backwards to the machine are stretched by means of a spoon. A rotating cutting unit pre-cuts the bird. Electrical power installed: 1 x 0.75 kW.

Meyn front half cutter: The whole birds are positioned sideways towards the machine. One rotating circular knife separates the whole breast from the bird. Electrical power installed: 1 x 1.1 kW.

Meyn leg processor: The saddle is positioned with the ribs frontwards to the machine. The high yield cutting module pre-cuts the saddle and the lower back is removed from the saddle which results in two anatomical legs. Electrical power installed: 1 x 1.5 kW.

Meyn drum/thigh separator: The shackle with the legs is positioned sideways to the machine. The cutting unit separates the drumstick from the thigh. Electrical power installed: 1 x 0.75 kW.
